Description

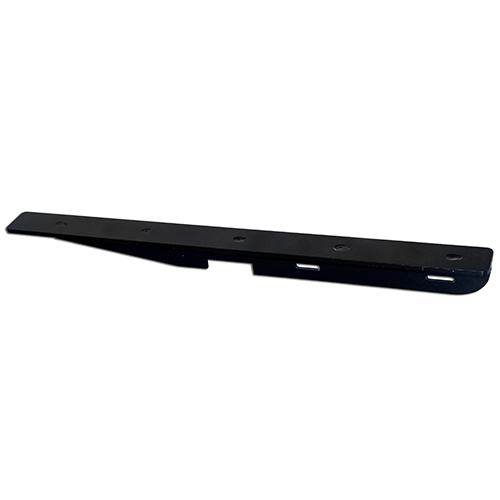

The CounterBalance IslandBar (24″) is a concealed steel support for countertop overhangs on a kitchen island or breakfast bar off of cabinetry. This bracket is designed to attach to the side walls of your cabinetry and support up to 18″ overhangs on 3cm stone.
| Item | Dimensions | Type of Overhang | Supported Overhang Length (3cm or 1 1/4″ Countertop Thickness) |
Supported Overhang Length (2cm or 3/4″ Countertop Thickness) |
| IslandBar Mini | 20″ L x 1.75″ W x 1.75″ H | Cabinetry Overhang (One-Side) | 10″ – 16″ | 10″ – 13″ |
| IslandBar | 24″ L x 1.75″ W x 1.75″ H | Cabinetry Overhang (One-Side) | 12″ – 18″ | 12″ – 15″ |
| CrossBar Mini | 18″ L x 18″ W x 1.75″ H | Cabinetry Overhang (Corner) | 9″ – 15″ | 9″ – 12″ |
| CrossBar | 24″ L x 24″ W x 1.75″ H | Cabinetry Overhang (Corner) | 12″ – 18″ | 12″ – 15″ |
Features and Benefits
- Made in the USA
- Low-profile, virtually invisible plate that gives your countertop the appearance that it is floating
- No corbels needed allowing more space for leg room and chairs
- Easy to Install
- Economical
What Size Bracket to Order:
The IslandBar (24″) is designed to support overhangs 6″ past the length of the bar. Since each bar (at maximum) needs to be installed half-inside (12″) and half-outside the cabinet (12″) the IslandBar Mini can support overhangs between 12″-18″ with 3cm stone.
Note: You may adjust the IslandBar back into the cabinetry further to have less bracket located underneath your overhang. Just remember that you cannot extend the countertop more than 6″ past the support with 3cm stone.
Other Options:
In some instances, situations like full overlay doors can limit the use of the IslandBar for use with your cabinetry overhangs. If that is the case an alternative to the IslandBar would be to use our CounterPlate or CounterPlate XL. If needed you will need to frame 2×4’s within the cabinetry to successfully mount the plates.
